Series QVI
UHP(Ultra High Purity)Pressure Transmitter
The QVI are pressure transmitter designed for stable,accurate,and reliable pressure monitoring in ultra high purity applications.The ultra stable,micro machined silicon strain gauges are matched and fused,at high temperature to the metal diaphragm to relieve manufacturing induced stress.The process reduces “drift”(lack of zero stability)commonly associated with competitive products. Consequently,down time for zero adjustment to compensate for“drift” are exponentially reduced.In addition,the unique mechanical design climinates the torque effects during installation.
Feature
-CE Certified
-0.25%FS accuracy
-4~20mA output
-Digital signal processing,high performance digital electronics
-Ultra stable glass bonded sensing elements
-Electropolished Stainless steel 316L(VIM+VAR)media - wetted materials
Application
-Gas cabinets
-Valve Manifold Boxes(VMBs)
-Gas panels
-Bulk gas distribution systems
Dimension
Wire Color | Connections |
Red | Input ⊕ |
Black | Output ⊕ |
Shield | Earth |
Wire Color | Connections |
Red | Input ⊕ |
Black | Output ⊕ |
Shield | Earth |

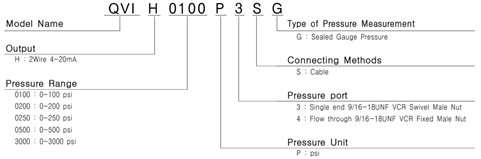

Ordering Information
* Specifications are subiect to change without notice
