Series QUE
General Purpose Pressure Transducer
QUE model has appliecl Silicon Piezoresistive cell,which attached High Temperature Glass on Titanium. Since it does not use O-ring,there is no possibility of corrosion and leak.Its low price makes it suitable for industria uses.With its various outputs,it may be interfaced with various controlle
Feature
-CE Certified
-Built-in amplifier Circuit(VDC,mA)
-Measuring range 0~1,500kg/cm2g
-0.5%FS accuracy
-Piezoresistive silicon cell
-Stainless steel,Titaniu media-wetted materia
Applications
-Process control
-Hydraulics & Pneumatic
-Compressor Control
-Chillers
-Refriaeration EQuipme
SPECIFICATIONS
Range | |
2,5,10,20,30,50,100,200,300,500,1000,1500kgf/cm2 | |
Performance | |
Accuracy | ±0.5%FS |
Linearity | ±0.35%FS |
Hysteresis | ±0.15%FS |
Repeatabllity | ±0.15%FS |
Thermal Effect on Zero | ±0.05%FS/℃ |
Thermal Effect on Span | ±0.05%FS/℃ |
Compensated Temperature Range | 0~50℃ |
Operating Temperature Range | -20~80℃ |
Electrical | |
Excitation | 11-28VDC(PTDA 12VDC Max.) |
Output | 10~20mV/V 1~5ADC,4~20mA(2Wire) |
Electrical Connection | Connector, Head, Din Connector |
Physical | |
Proof Pressure | 150%FS Max. |
Burst Pressure | 200%FS Min. |
Vibration | 49.1m/s2{5G},10~500Hz |
Shock | 490m/s2{50G} |
Pressure Port | PT1/8”,PF1/8”,PT1/4”(Stock),PF1/4”,PT3/8”(Stock),PF3/8” |
Media - Wetted Materials | Stainless Steel 304(Optional 316),Titanium 87% |
Weight | Connector type:Approx.140g(Sensor Only) |

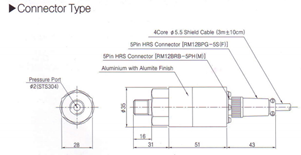

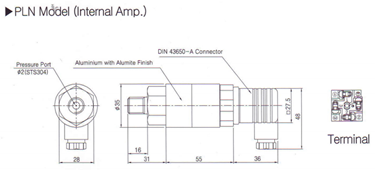

Dimension
Pin No. | Wire Color | Connections | ||
4Wire | 3Wire | 2Wire | ||
1 | Red | Input ⊕ | Input ⊕ | Input ⊕ |
2 | White | Output ⊕ | Common ⊝ | X |
3 | Black | Input ⊝ | X | Output ⊕ |
4 | Green | Output ⊕ | Output ⊕ | X |
5 | Shield | Earth | Earth | Earth |
NO. | Connections |
2Wire | |
1 | Input ⊕ |
2 | Earth |
3 | Output ⊕ |
Pin No. | Connections | |
3Wire | 2Wire | |
1 | Input ⊕ | Input ⊕ |
2 | Common ⊝ | Output ⊕ |
3 | Output ⊕ | X |
⍊ | Earth | Earth |

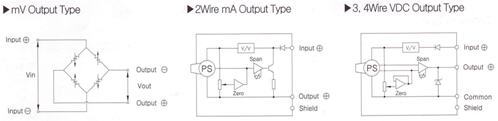

Internal Circuit Diagram

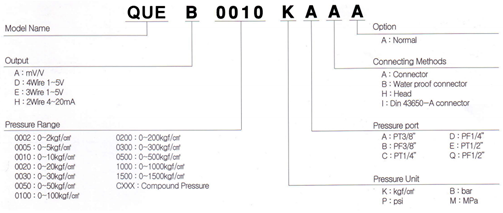

Ordering Information
* Specifications are subiect to change without notice
WZO CONTROLS LTDS
