Series XYFS
X-Y Force Sensor
The model XYFS is designed for radial 2 axis force measurement.
-The complete 2-component system
-Stainless steel(17-4PH) construction for high accuracy and corrosion resistance
SPECIFICATIONS
TYPE | XYFS |
Rated capacity (R.C.) | X-500kg Y-500kg |
X-750kg Y-250kg | |
X-1000kg Y-500kg | |
Rated output(R.O.) | 2.0mV/V ± 0.2%(X,Y axis) |
Non-linearity | ≤0.1% R.O. |
Hysteresis | ≤0.1% R.O. |
Non-repeatability | ≤0.05% R.O. |
Creep error | ≤0.05% in 20min. |
Zero balance | ≤0.1% R.O. |
Crosstalk | ±1% |
Compensated temperature range | -10 ~ 70℃ |
Operating temperature range | -20 ~ 80℃ |
Temp. effect on rated output | ≤0.5% LOAD/10℃ |
Temp. effect on zero balance | ≤0.5% R.O./10℃ |
Terminal input resistance | 350 Ohms ± 3.5 Ohms |
Terminal output resistance | 350 Ohms ± 5 Ohms |
Insulation resistance(Min.) | 2000 MOhms at 50V DC |
Excitation voltage | 10V(Recommended),15V(Max.) |
Electrial connection | 4Pin connector |
Protection class | meets IP 54 |
Safe overload | 150% R.C |
Ultimate overload | 300% R.C |

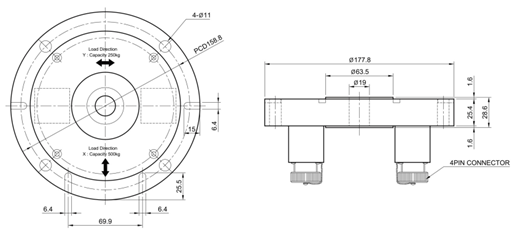

Dimension
