Axis Loadcell
Series MALC
Multi - axis load cell(2,3,4,5,6 axis)
FEATURES
various capacity of detecting up 6 components minimise interaction between components
Protection class IP65
high accuracy less than 0.5% on each components
all products patent pending order made(capacity, size)
SPECIFICATIONS
Max.Capacity | Kgf / kgf.m | 2，5，10，20，50 / 0.2，0.5，1，2，5 |
Rated output | mV/V | 0.5（approx） |
Zero balance | mV/V | 0 ± 0.1 |
Combined error | %RO | 0.5 |
Repeatability | %RO | 0.1 |
Creep(30min.) | %RO | 0.05 |
Temperature effec on | interference error:± 3%FS | |
Zero value | %RO/10℃ | 0.1 |
Output value | %RO/10℃ | 0.6 |
Excitation | ||
Recommended | V | 10 |
Maximum | V | 15 |
Resistance | ||
Input | Ω | 400 ± 50 / 800 ± 50 |
Output | Ω | 350 ± 3.5 / 700 ± 7 |
Insulation | MΩ | >2000@50V DC |
Compensated temp. range | ℃ | -10 ~ +40 |
Operating temp. range | ℃ | -20 ~ +70 |

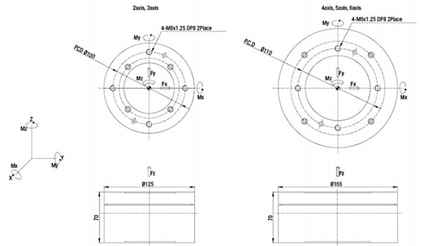

Dimension
