Series V6200
Industrial- High EMI Rated, High Stability
The V6200 series from SENSYS Sensors sets the price / performance standard for transducers used in demanding environments.The V6200 exceeds the latest heavy industrial CE requirements including surge protection,and is over voltage protected in both positive and reverse polarity.The 100% 316L media isolation covers all but the most corrosive environments.
Feature
-Heavy Industrial CE Approval
-100V/m EMI Protection
-Reverse Polarity Protection
-0.3%FS accuracy
-Compact Outline
--40 to 125℃
Application
-Advanced HVAC Controllers
-Refrigeration Systems
-Automotive Test Stands
-Gas compressors
-Industrial process control
-Pumps and Compressors
-Hydraulic/Pneumatic
-Agriculture Equipment
-Energy and Water Management
SPECIFICATIONS
Range | ||||||||
1,2,3.5,7,10,20,35,70,100,200,350,700 bar | ||||||||
Performance | ||||||||
Accuracy | ±0.3%FS(RSS) | |||||||
Thermal Effect on Zero | ±0.03%FS/℃ | |||||||
Thermal Effect on Span | ±0.03%FS/℃ | |||||||
Compensated Temperature Range | -20~85℃ | |||||||
Operating Temperature Range | -40~125℃ / -40~100℃(4~20mA) | |||||||
Electrical | ||||||||
Excitation | 4.75~5.25VDC | 8~30VDC | 15~30VDC | 9~30VDC | ||||
Output | 0.5~4.5VDC | 1~5VDC | 0~5VDC | 0~10VDC | 4~20mA(2Wire) | |||
Insulation Resistance | 1MΩ @25VDC | |||||||
Electrical Connection | Cable,Packard Connector,Mini Din Connector | |||||||
Physical | ||||||||
Proof Pressure | 300%FS Max. | |||||||
Burst Pressure | 400%FS Min. | |||||||
Vibration | 20G at 20 to 200Hz | |||||||
Shock | 50G / 11ms | |||||||
Media - Wetted Materials | Stainless Steel 316 | |||||||
Weight | Mini Din Connector type:Approx. 100g(Sensor Only) | |||||||
CE compliant per the following specification
EN55022 Emission Class A & B
IEC61000-4-2 Electrostatic Discharge Immunity(6kV contact/8kV air)
IEC61000-4-3 EM Field Immunity(30V/m)
IEC61000-4-4 Electrical Fast Transient Immunity(1kV)
IEC61000-4-5 Surge(1kV)
IEC61000-4-6 Conducted Immunity(10V)
IEC61000-4-9 Pulsed Magnetic Field Immunity(100A/m)
Dimension
Wire Color | Connections | |
V Output | mA Output | |
Red | Input ⊕ | Input ⊕ |
Black | Common ⊝ | Output ⊕ |
Green | Output ⊕ | X |
Pin No. | Connections | |
V Output | mA Output | |
A | Input ⊕ | Input ⊕ |
B | Common ⊝ | Output ⊕ |
C | Output ⊕ | X |
Pin No. | Connections | |
V Output | mA Output | |
1 | Input ⊕ | Input ⊕ |
2 | Output ⊕ | Output ⊕ |
3 | Common ⊝ | X |
⊜ | Earth | X |

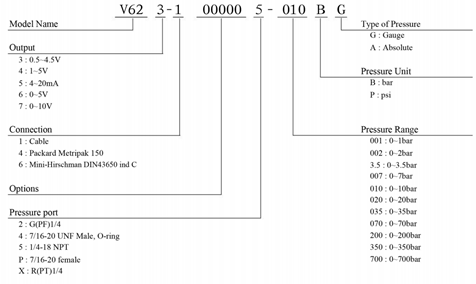

Ordering Information
* Specifications are subiect to change without notice
