Flanged Type Reaction Torque Transducer
Series FTRTTK200
FIanged Type Reaction Torque Transducer (5kgf-m～200kgf-m)
The FTRTTK200 series, reaction torque transducers, guarantee the high performance comparing to the other in the same class.
-Low deflection.
-Small size.
-Alloy tool steel construction.
- High stability and sensitivity.
SPECIFICATIONS
TYPE | FTRTTK200 |
Rated capacity(R.C.) | 5，10，20，50，100，200kgf-m |
Rated output(R. O.) | 1.0mV/V ±1.0% |
Non-linearity | ≤0.5% R.O. |
Hysteresis | ≤0.5% R.O. |
Non-repeatability | ≤0.2% R.O. |
Creep error | ≤0.5% in 20 min |
Zero balance | ≤1% R.O. |
Compensated temperature range | -10 ~ 70℃ |
Operating temperature range | -20 ~ 80℃ |
Temp.effect on rated output | ≤0.02% LOAD/10℃ |
Temp.effect on Zero balance | ≤0.02% R.O /10℃ |
Terminal input resistance | 400 Ohms ± 20 Ohms |
Terminal output resistance | 350 Ohms ± 5 Ohms |
Insulation resistance(Min.) | 2000 MOhms at 50V DC |
Recommended excitation | 10V(Recommended),15V(Max.) |
Electrial connection | Ø7mmX3m(22AWG x 4Core Shielded) |
Protection class | meets IP 64 |
Safe overload | 150% R.C |
UItimate overload | 500% R.C |

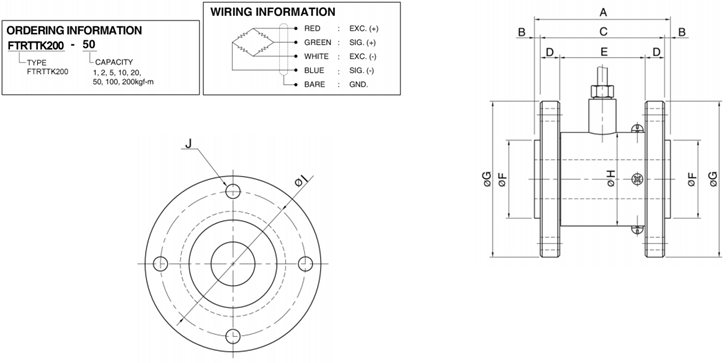

Dimension-mm
Rated Capacity | A | B | C | D | E | F | G | H | I | J | Weight(kg) |
5.0kgf-m（49.035N-m） | 70 | 3 | 64 | 10 | 44 | 40 | 80 | 48 | 66 | 2 x 4 - ø6.5 | 1.5 |
10kgf-m（98.074N-m） | 70 | 3 | 64 | 10 | 44 | 40 | 80 | 48 | 66 | 2 x 4 - ø6.5 | 1.5 |
20kgf-m（191.64N-m） | 86 | 3 | 80 | 15 | 50 | 40 | 98 | 58 | 78 | 2 x 6 - ø10.5 | 1.8 |
50kgf-m（490.35N-m） | 130 | 5 | 120 | 20 | 80 | 60 | 118 | 58 | 95 | 2 x 6 - ø10.5 | 2.7 |
100kgf-m（980.7N-m） | 136 | 3 | 130 | 20 | 90 | 60 | 146 | 75 | 115 | 2 x 6 - ø14 | 2.9 |
200kgf-m（1916N-m） | 146 | 3 | 140 | 25 | 90 | 60 | 166 | 88 | 130 | 2 x 6 - ø18 | 3.2 |
* Specifications are subiect to change without notice
